Warehouse Alarms & Security Integration Reference

An educational resource from Northeast Remote Surveillance and Alarm, LLC (NERSA). Use this warehouse alarm and security integration reference to understand detection, zoning, monitoring, connected equipment, and the records that make a unified system usable. It covers Pennsylvania facilities and planning questions relevant across the Mid-Atlantic.

A warehouse alarm plan starts with an operating question: which area should be secure, during which hours, and who must act when its condition changes? Building size alone cannot answer that question. A distribution center may run continuously while its office, inventory cage, or detached storage building remains armed.

Choose Your Planning Path

Warehouse alarm responsibilities by reader
Reader	Start with	Take away
IT teams	Network paths, account ownership, supported integrations, backups, and updates	A system inventory, dependency map, access policy, and change process
Managers	Shifts, doors, alarm areas, staff permissions, and response procedures	Clear operating instructions, escalation contacts, and a training record
Owners	Scope, existing equipment, lifecycle costs, service responsibilities, and acceptance criteria	A comparable project brief and evidence that agreed functions work
Loss prevention	Detection objectives, event context, verification, evidence handling, and recurring causes	A usable event matrix, investigation record, and correction process

Work through the complete topic guide together. A technical feature only helps when someone owns its operation and the response that follows.

Separate Intrusion, Fire, and Environmental Alarms

These systems address different events and can require different equipment, approvals, testing, and response instructions. A single app or dashboard does not make their responsibilities interchangeable.

Alarm function	Warehouse example	Planning question
Intrusion	An exterior door opens while its area is armed.	Which opening or area triggered the event, and what response is authorized?
Fire and life safety	A fire-alarm or sprinkler-related signal reaches the responsible monitoring service.	What design, notification, supervision, inspection, and response requirements apply to this building?
Environmental or equipment condition	A monitored temperature, water, or power condition falls outside its agreed limits.	Who evaluates the condition and protects the affected stock or equipment?
System trouble	A communicator, battery, or detection circuit reports a fault.	Who receives the fault and confirms restoration of the affected function?

Keep a separate scope for fire and life-safety work. The responsible design professionals and local authority determine the applicable requirements. This reference does not specify detector spacing, battery sizing, or a fire-alarm design for a particular property.

Choose Detection for the Opening and Environment

First, draw the protected boundary. Mark personnel doors, overhead doors, windows, accessible interior routes, and restricted storage. Then record normal movement and environmental conditions. Choose devices using their manufacturer instructions and the actual installation conditions.

Personnel Doors and Overhead Dock Doors

A contact reports a change in the opening it monitors; it does not establish who opened the door. Identify each door separately where practical so staff can find the affected location. At a dock, review door movement, alignment, vibration, cable protection, and exposure to forklifts or freight. A contact suitable for an office door may not suit an industrial overhead door.

Use names that match site signage, such as “Receiving Door 04,” rather than a number that only an installer understands. Record which doors staff use during entry and exit, and which must remain protected while another area operates.

Interior Motion and Other Detection

Racking, stacked goods, moving equipment, temperature changes, and open loading doors can affect a detector’s useful coverage. Follow the specified mounting height, coverage pattern, environmental rating, and installation method. A quoted detection range is not a promise of unobstructed coverage throughout a warehouse.

Compare the proposed pattern with occupied aisles and full storage racks, then test representative routes. Review coverage again after racking or stock arrangements change. Specialized perimeter, glass-break, beam, or other detection needs its own suitability assessment; no single device replaces a complete plan.

Turn Warehouse Shifts into Zones and Partitions

A zone identifies a monitored point or condition. A partition or area groups protection that users can operate separately when the panel supports it. Product terminology varies, so include both the device names and the intended operation in the records.

For example, an evening receiving team may need the dock active while the office remains armed. A cleaner may need a route through the office without access to the inventory cage. Define those permissions before programming a building-wide schedule.

Record	Example to adapt
Area and boundary	Receiving office; identify every opening and connecting route.
Normal schedule	Document actual operating hours, weekends, and holidays.
Authorized users	List roles allowed to arm or disarm; assign individual credentials where supported.
Exceptions	Late carrier, maintenance work, cleaning, and temporary stock movement.
Event owner	Name the responsible role and backup contact.
Review trigger	Tenant change, shift change, new racking, or altered delivery route.

Do not publish real codes, confidential floor plans, bypassed points, or detailed response arrangements on a public website. Keep the completed operating record with authorized facility staff.

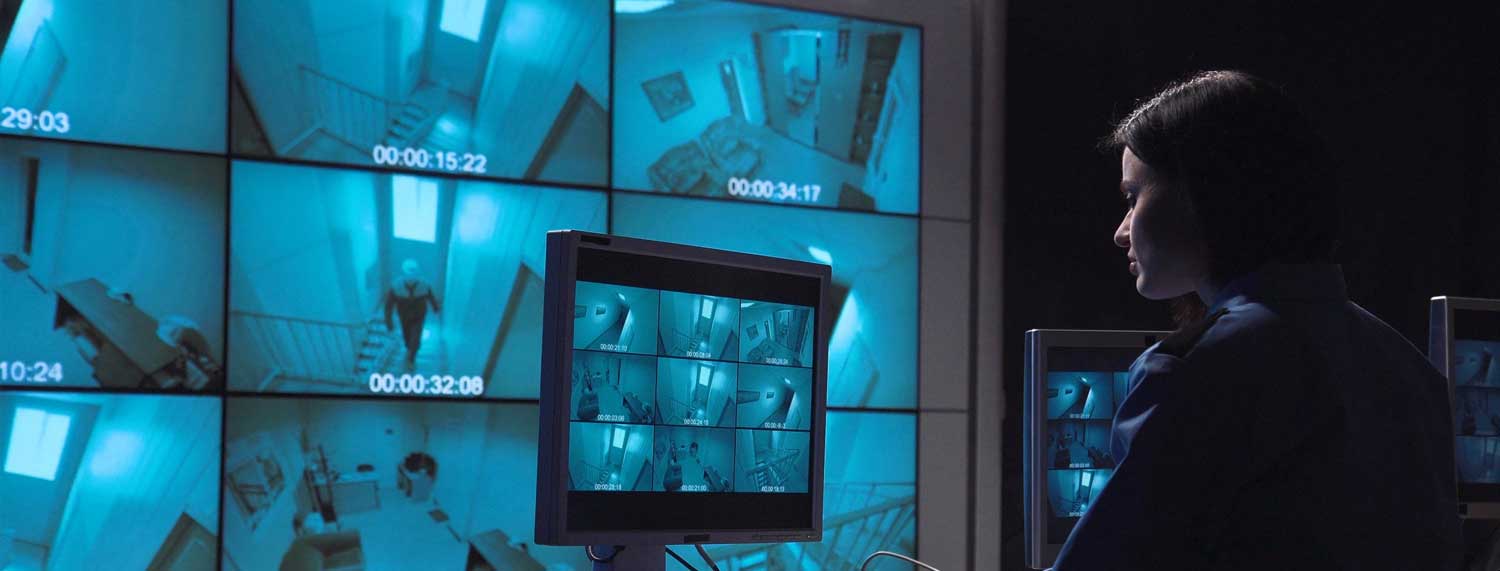

Understand What Happens After an Alarm

Detection, notification, verification, and response are separate steps. A mobile alert informs an account user. Professional monitoring adds an agreed operator process. Neither a camera connection nor an app automatically establishes continuous operator attention.

A device or configured condition generates an event.
The panel and communication service send the relevant signal.
The receiving service identifies the account, event, and location.
Personnel follow the agreed verification and contact instructions.
The event record documents the action and any unresolved follow-up.

Ask which event types the service handles, which hours apply, how contact attempts work, and who updates the instructions. Confirm procedures for a communication fault as well as an intrusion event. Local emergency services control their response; a monitoring contract cannot guarantee a police arrival time.

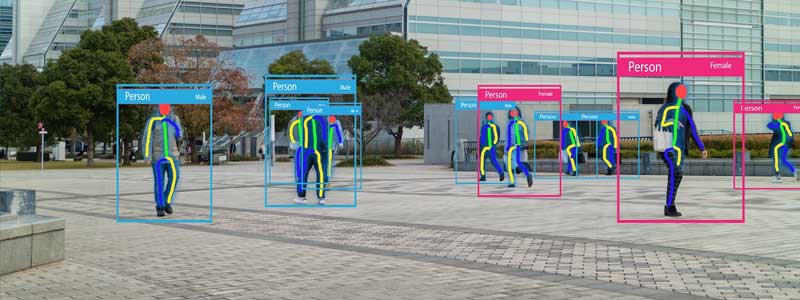

Video Verification and Alarm Classification

Supported video can give an operator additional context, but the associated view must show the relevant area at the event time. Darkness, obstructions, missing recordings, or an incorrect camera association can limit verification. Test the actual event-to-view process.

TMA’s AVS-01 framework provides a standardized way to classify burglar-alarm information. Ask the monitoring provider how it uses the framework and what the receiving jurisdiction accepts. Do not assume every provider or agency uses the same process.

Integrate Warehouse Alarms with a Defined Response

Integration connects functions between systems. Unification brings supported functions into a common operating environment. Neither term guarantees that every device, event, or permission works together. Specify the event, the information a user needs, the permitted action, and the record that proves the sequence worked.

For example, an armed receiving-door contact can generate an alarm, show an associated camera view, and help an operator check the receiving schedule. An intercom can support communication at the entrance. Each step needs compatible equipment, correct configuration, an authorized operator, and a tested fallback when a connection fails.

Connected system	Its role in the alarm workflow	What to verify
Access control	Provides credential events, door status, and approved entry context.	Door names, time alignment, user permissions, and any explicit arm/disarm rule. A valid credential should not automatically disarm an unrelated area.
Cameras	Provide an associated view or recording for supported alarm verification.	The correct camera appears, the view covers the event, and authorized staff can retrieve the relevant recording.
Intercoms	Support communication with drivers, visitors, or staff at a designated point.	Call routing, audibility, answering responsibility, and separately authorized release controls.
Wireless and internet infrastructure	Carry supported event, video, intercom, and management traffic.	Coverage or link suitability, capacity, security, outage behavior, and the distinction between local radio links and internet service.
Low-voltage infrastructure	Supports connected devices through appropriate cabling, power, network equipment, and records.	Approved pathways, tested connections, device power requirements, labeling, equipment access, and responsibility for faults.

Write an Event-to-Action Matrix

For each proposed connection, record the trigger, originating device, receiving platform, associated camera or intercom, permitted action, operator role, and expected result. Include a failure condition. If the video service is unavailable, the alarm signal should follow the documented response process rather than disappear into an incomplete integration.

Keep automatic actions narrow and reviewed. A notification is different from changing a lock state or disarming protection. Coordinate any action affecting doors or life safety with the responsible professionals. Test the complete sequence with the people who will operate it.

Unify Administration Without Sharing Every Permission

A single dashboard can simplify work, but different users may still need different rights. Separate routine alarm operation, video export, remote door release, system configuration, and account administration. Confirm what the platform records and how the owner removes access when someone leaves.

Compare native platform support, documented connectors, and interfaces between vendors. Confirm licensing, supported versions, update responsibility, and what happens if a connector stops working. Keep an integration inventory alongside the device list so future changes do not silently break a response sequence.

Plan the Network Behind the Integration

Distinguish a local wireless bridge, Wi-Fi coverage, an internet connection, and a cellular alarm communication path. They solve different problems. A bridge between buildings does not itself supply internet service or create an independent backup route.

Review line of sight where the chosen wireless technology requires it, expected traffic, power, equipment suitability, and installation access. Define appropriate network separation and authorized remote access with the IT team. Then test representative alarm, video, and intercom traffic together under the agreed operating conditions.

Compare Local, Cloud-Managed, and Hybrid Operation

“Cloud” describes where certain management or service functions operate. It does not tell you whether detection continues locally during an outage. Ask the provider to explain the panel, communicator, app, monitoring receiver, and account dependencies separately.

Local control: establish what the panel can detect and operate without an external connection.
Cloud management: identify which remote controls, history, notifications, and subscriptions depend on the service.
Hybrid arrangement: document the local functions and the remote services together, including behavior when either is unavailable.

A second communication path can improve resilience only when the proposed design supports it and its dependencies are understood. Internet service, cellular coverage, routers, panel power, and backup supplies each matter. Test the agreed fault and restoration conditions with the provider. Do not unplug or disable an active alarm system without a coordinated test procedure.

Reduce Unwanted Alarms Through Diagnosis

Start with the event history. Repeated events at the same door may call for a physical inspection; events around shift changes may point to an operating mismatch. Avoid treating every unwanted event as a sensitivity setting.

Compare event times with deliveries, cleaning, and maintenance.
Check door condition, device alignment, and damaged wiring.
Review obstructions and environmental conditions around detectors.
Confirm that users understand entry, exit, and cancellation procedures.
Keep current contact details and remove obsolete user permissions.
Retest the affected function after a correction and record the result.

Persistent faults need service. Routine bypassing can leave the intended protection incomplete. Document any temporary impairment, its responsible person, and the restoration plan within the facility’s controlled records.

Evaluate an Existing Warehouse Alarm Before Replacement

Begin with the panel model, device inventory, available programming records, service history, communicator details, and account ownership. Confirm that the owner can authorize the work and obtain the access needed for legitimate administration.

Then separate three decisions: repairing a fault, upgrading a limited component, and replacing an unsupported platform. Existing wiring or detectors may remain useful after condition and compatibility checks. An unfamiliar installer code, unsupported communicator, or restricted account can change the scope.

For a provider change, agree on the monitoring transition, responsibility during the work, and acceptance checks before ending the existing arrangement. Record which equipment remains, what changes, and who provides future support.

Warehouse Alarm Handover Checklist

Use this as a discussion checklist, not a substitute for the system’s required commissioning procedure.

Match every protected point to a readable zone name and location record.
Confirm the approved arming areas, schedules, users, and temporary-access rules.
Coordinate representative event tests with the monitoring provider.
Confirm that the receiver shows the correct site and event information.
Test supported verification and the agreed communication-fault procedures.
Record power and battery checks required by the equipment and project scope.
Train authorized staff on operation, faults, and obtaining service.
Keep equipment records, service responsibilities, and open corrections together.

Finally, assign an owner for future changes. A sound handover becomes outdated when staff, tenants, stock layouts, or operating hours change without updating the alarm plan.

Local Requirements and Provider Questions

Check the exact municipality for registration, permits, false-alarm procedures, and emergency-response requirements. A postal city name may cover more than one jurisdiction. For example, Philadelphia publishes its own burglar-alarm registration process; it should not be applied to other towns.

Ask what certification, if any, applies to the proposed service and protected property. UL explains central-station service certification and protected-property certificates. Listed equipment, a listed monitoring station, and a certificate for a particular installation are different claims.

Compare documented scope, ongoing service responsibilities, account ownership, support arrangements, and equipment limitations. Keep fire-alarm design and code approval with the responsible professionals.

Define Ownership, Costs, and Service Boundaries

Compare proposals against the same written scope. Separate equipment, installation, commissioning, training, monitoring, communications, software licenses, storage, maintenance, and later changes. Avoid comparing a purchase price with a package that includes different ongoing services.

Record who owns equipment, accounts, configuration records, recordings, and the right to request service changes. Ask how a provider transition works, which functions require a subscription, and what records the owner receives at handover. Confirm those terms in the actual agreement.

Build a Loss-Prevention Review Process

Agree on the information an authorized reviewer needs after an event: the alarm record, relevant door activity, available video, operator actions, and the correction or follow-up. Record time references and known gaps so the sequence is not presented with more certainty than the evidence supports.

Set access and retention requirements with the organization’s responsible teams. Limit exports to authorized purposes, record who handles them, and preserve relevant material through the approved process when an incident requires review. Do not publish facility protection details or personal information in general reports.

Review recurring events for operational causes as well as equipment faults. Distinguish a device fault, unwanted activation, confirmed incident, and unresolved event. Define those categories before comparing monthly totals.

Maintain the Plan After Handover

Assign an owner for inspection, testing, batteries, software updates, and service records. Use the equipment instructions, provider requirements, and applicable obligations to set the schedule. Coordinate tests with affected staff and the monitoring provider.

Review current users and escalation contacts.
Investigate repeated faults or unexplained events.
Check approved changes to doors, racks, shifts, tenants, and network equipment.
Confirm recording and integration functions still meet the agreed scope.
Record completed service, remaining limitations, and retest results.

Plan an upgrade when a documented requirement exceeds the current system, support changes, or a component can no longer be maintained appropriately. Use the existing-system review to identify what can remain useful.

Research Manufacturers and Specialized Sensors

Use the alarm manufacturer directory to compare documented platforms and regional support. The Ajax warehouse alarm guide explains shock and tilt door contacts, curtain motion detection, and the checks needed for their application.

Warehouse Alarm Project Workbench

Use the reference as a sequence of decisions, from the first survey through ongoing operation. Each step below produces a useful record that the owner, facility team and service providers can review together.

From warehouse requirement to accepted operation
Stage	Read and use	Record to produce
Understand the facility	High racks, docks, cold storage, shared facilities and yards	Operating requirements and environmental constraints
Compare designs	Procurement scorecard and manufacturer selection framework	Evidence-backed configuration and lifecycle assumptions
Assign technology responsibilities	Cloud, local and hybrid dependencies and IT handover	Function map, asset inventory and named owners
Prepare the response	Monitoring runbook	Approved event, verification and escalation procedures
Accept the work	Acceptance test template	Observed results, defects and completed retests
Manage changes and incidents	Operational worksheets and management measures	Current maintenance, impairment and incident records

Questions to Resolve Before Requesting a Design

Can one alarm system cover a warehouse that never closes? Start by identifying which spaces or functions require protection while others remain active. The selected platform must support the needed operating areas, permissions and schedules. Document shared-door behavior and test representative shifts.

Should cameras replace intrusion detectors? Define the detection and verification jobs separately. A camera may provide context or a supported analytic event, but its suitability depends on the scene, lighting, obstructions and response workflow. Specify what each layer must accomplish and test it.

Does cloud management mean the alarm stops without internet? The answer depends on the exact equipment and functions. Record local detection, reporting, recording, access decisions and remote management separately in the dependency worksheet.

How should an owner choose between brands? Compare documented configurations against the same requirements. Check monitoring support, environmental suitability, integration, administration, lifecycle costs and acceptance evidence. A brand name alone cannot answer those questions.

Continue Through the Reference

This educational reference is maintained by NERSA. Explore the regional research directory for related warehouse resources, or use the survey, acceptance and maintenance checklists to document your next planning step.
